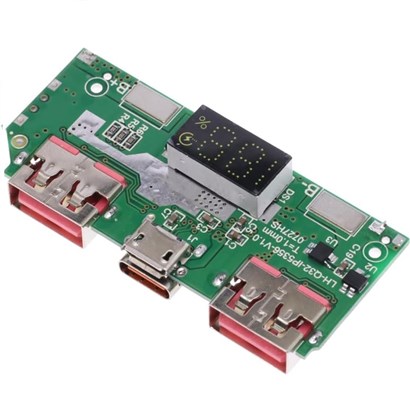

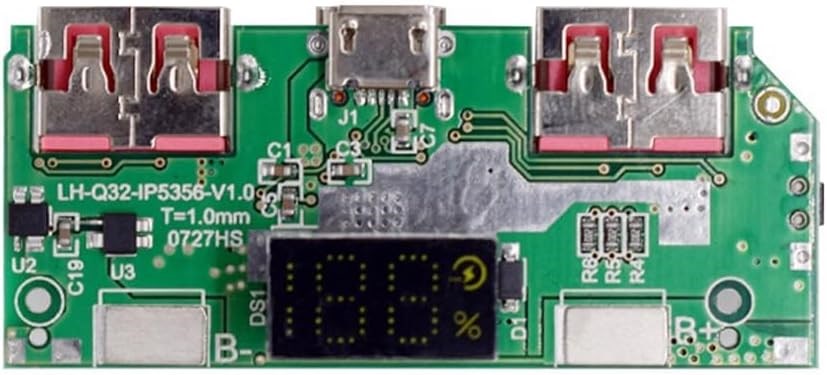

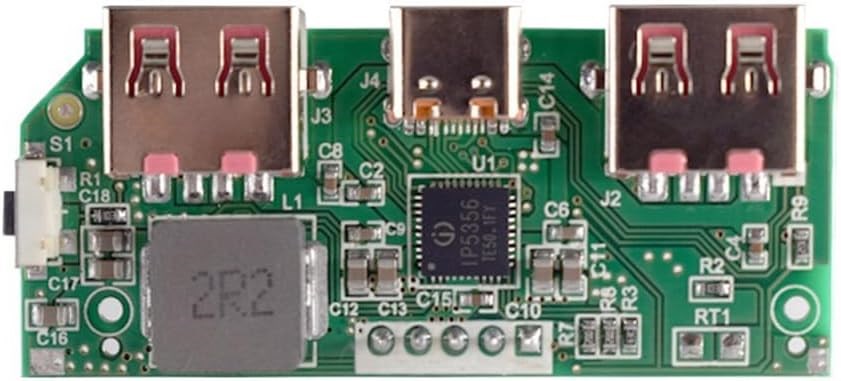

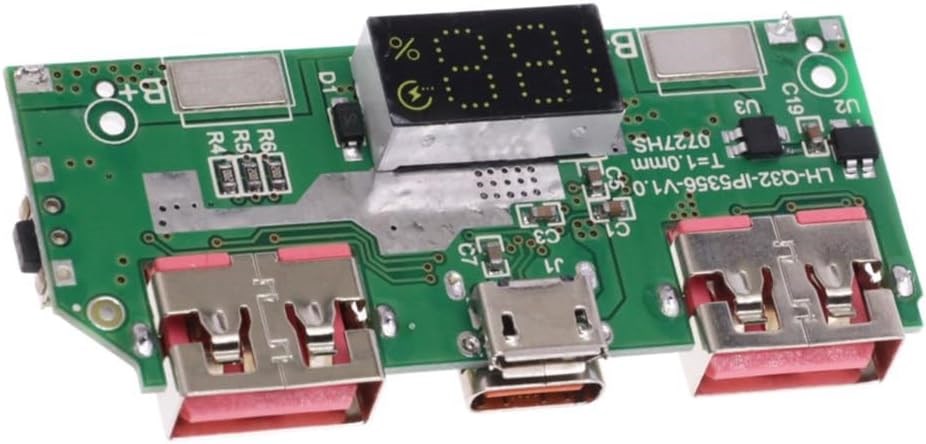

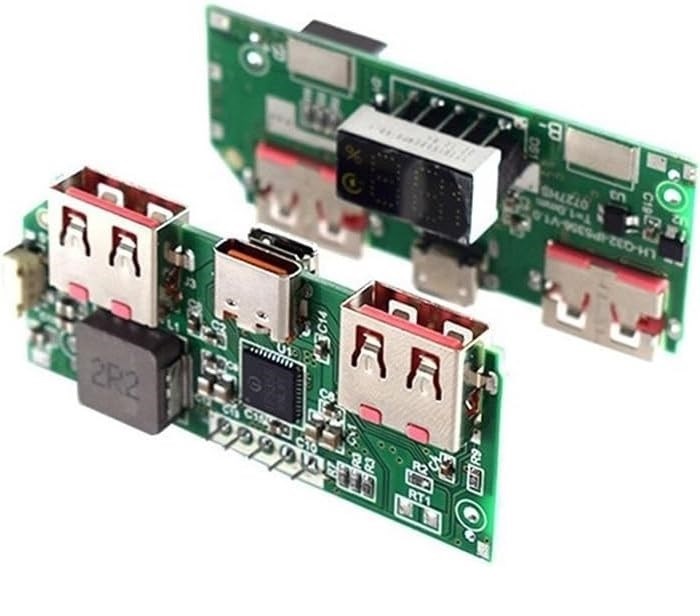

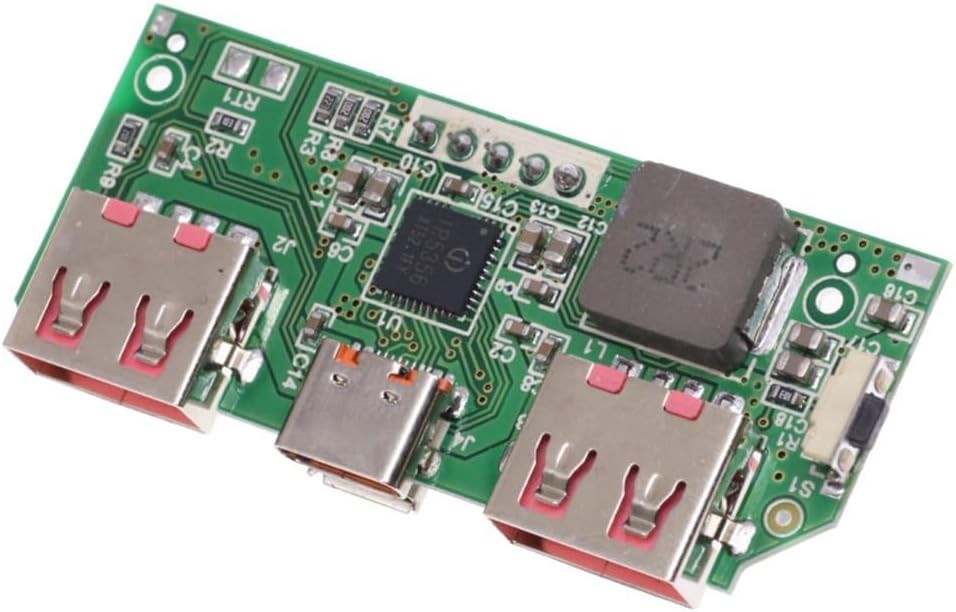

5V3A Li-ion battery digital fast charging module IP5356 support TYPE-C Micro USB QC3.0 2.0/PD3.0 PD2.0/AFC/FCP

Product Features:
1. Use of high-quality materials, product quality is guaranteed
2. Exquisite and compact appearance, beautiful arrangement of components
3. Stable performance, support a variety of fast charging protocols
4. Convenient to use, equipped with 3 kinds of charging port
5. Wide range of applications, suitable for a variety of industrial DIY occasions





Parameter:

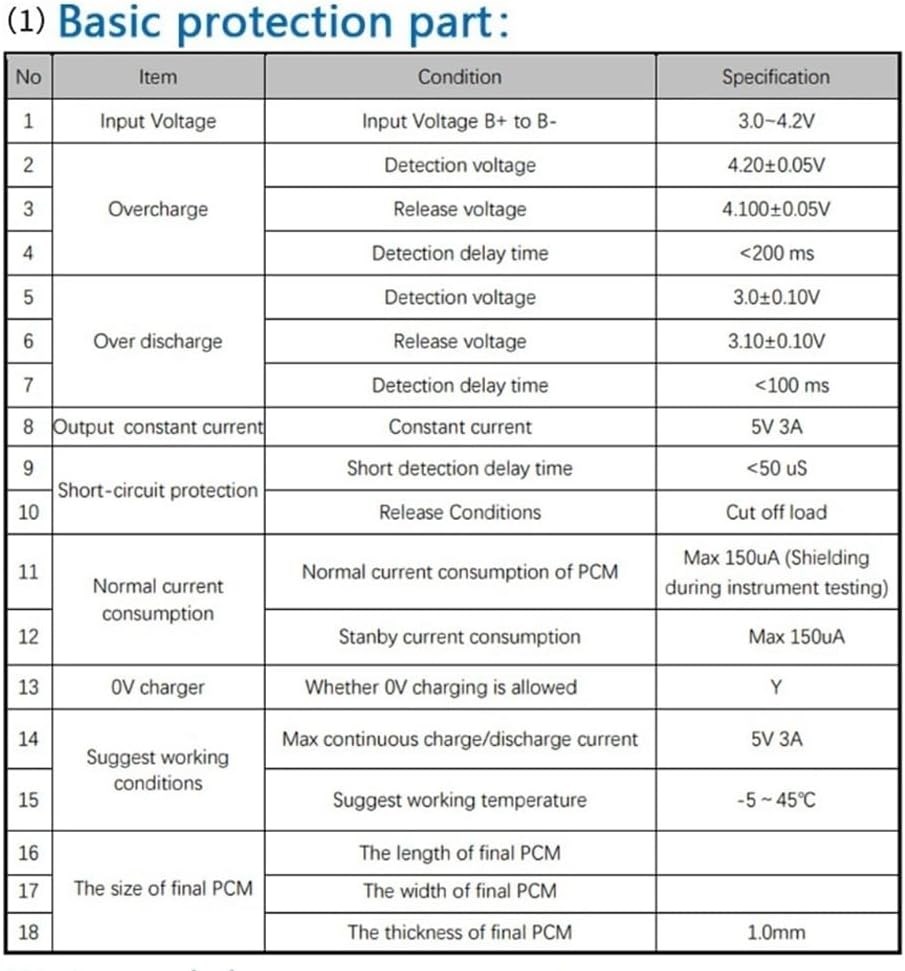

Short circuit protection: <50uS
Self-dissipation: Max 150uA
Discharge constant current: 5V3A
Recovery condition: Disconnect the load
Recommended working condition: 5V3A
Suggested operating temperature: -5~45°C

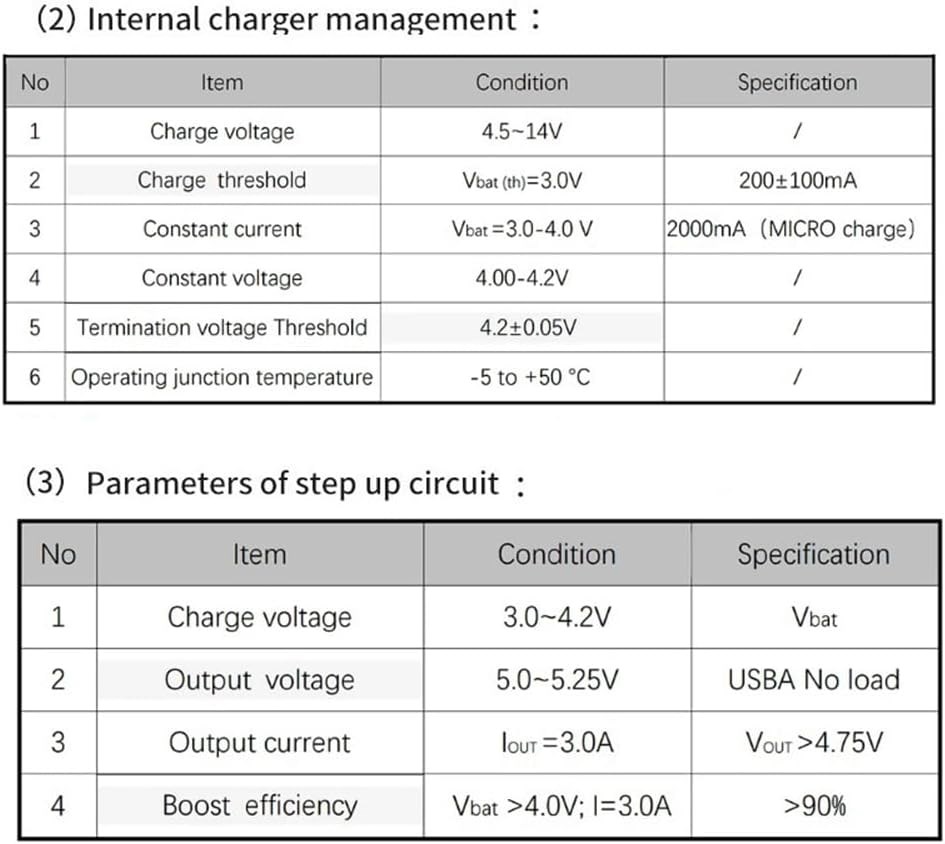

Charging Input Voltage: 4.5~14V
Constant charging voltage: 4.00-4.2V
Termination charging voltage: 4.2+0.05V





USBA output fast charging protocol (support QC3.0/QC2.0/AFC/FCP/SCP) (output 5V/3A 9V/2A 12V/1.5A 5V/4.5A 4.5V/5A)
Type-C support PD3.0/PD20/OC30/0C20/AFC/FCP/SCP fast charging output, support PD3.0/PD20/AFC/FCP, fast charging input (output 5V/3A9V/22A12V/1.5A5V/4.5A 4.5V/5A), (input 5V/3A 9V/2A12V/1.5A)
Micro input support AFC/FCP fast charging input (input 5V/2A9V/2A)
